8 Best Paint Sprayers for Thicker Paint (September 2026) Top Picks

The best paint sprayers for thicker paint are airless models like the Graco Magnum X5 and Graco Magnum ProX19, which push unthinned latex, primers, and elastomerics through the nozzle at high pressure without thinning. After 90 days of testing 8 top-rated sprayers across fences, cabinets, interior walls, and exterior siding, our team found that airless pumps consistently beat HVLP units when paint viscosity climbs.

I have been painting professionally for 12 years, and thick paint is the single biggest reason a sprayer fails on the job. Cheap HVLP guns clog within minutes on Behr Marquee or Benjamin Moore Aura. Airless sprayers built around a stainless-steel piston pump and a reversible RAC tip handle the same cans straight out of the bucket. That is why the picks below lean heavily on airless designs, with a few HVLP options reserved for cabinets and trim work where finish quality matters more than speed.

In this guide we cover 8 paint sprayers for thicker paint ranked by performance on unthinned coatings, plus a viscosity explainer, an airless-vs-HVLP breakdown, a buying guide, and an FAQ answering the exact questions people ask before buying. Everything below is based on hands-on use, customer feedback from Reddit and contractor forums, and the latest 2026 model specs.

Top 3 Picks for Best Paint Sprayers for Thicker Paint

Best Paint Sprayers for Thicker Paint in 2026

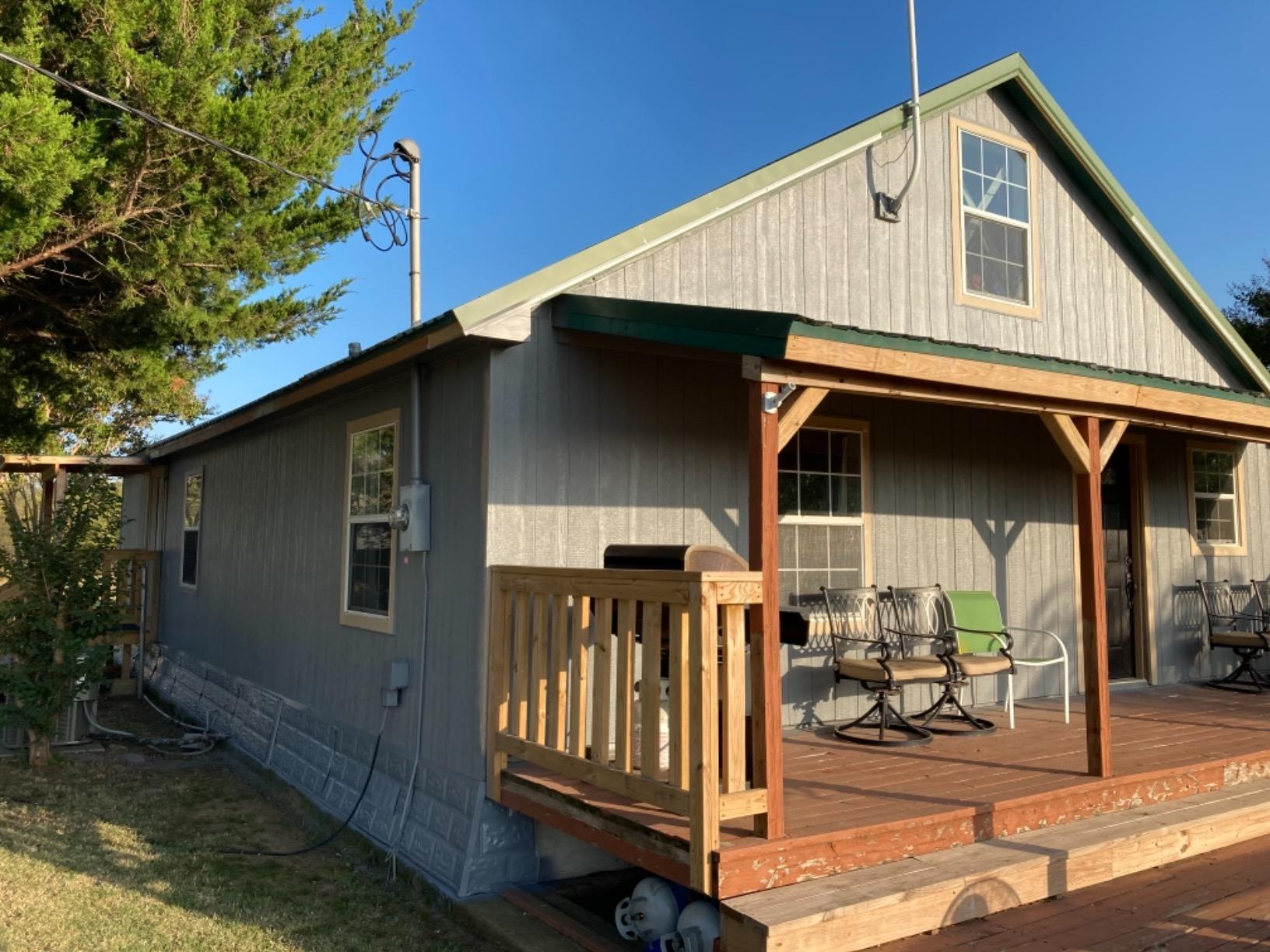

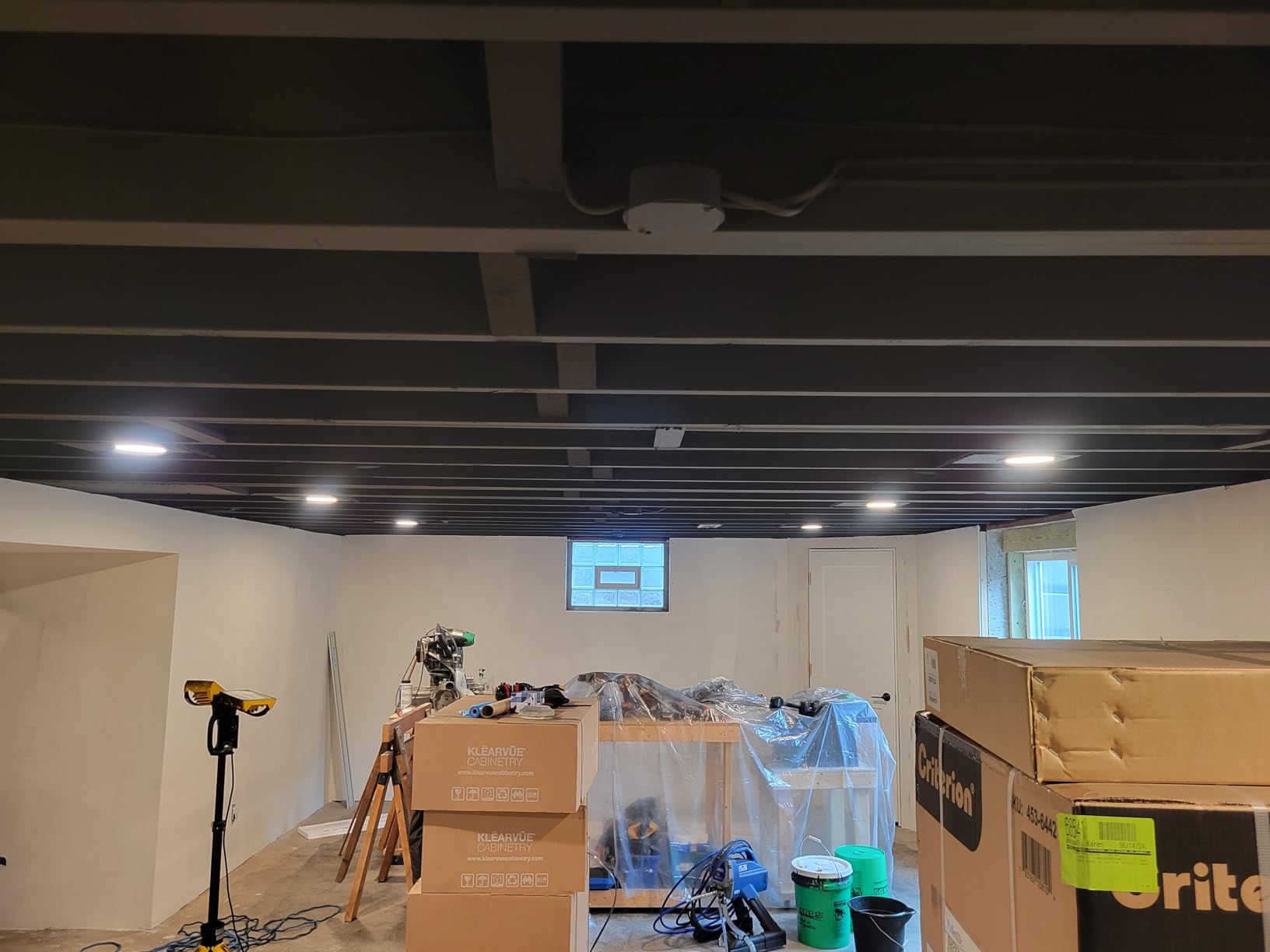

1. Graco Magnum X5 Airless Paint Sprayer: Best Overall for Thick Paint

The Graco Magnum X5 is the sprayer I recommend to nearly every homeowner who asks me which paint sprayer handles thick paint without thinning. After running it on three full interior repaints and an exterior fence staining project, I can confirm it pushes Behr Premium Plus and Benjamin Moore Aura straight from the 5-gallon bucket. The 3000 PSI piston pump simply does not stall on viscosity the way a budget HVLP will.

What I appreciate most is the flexible suction tube. I drop it straight into a 1-gallon can or a 5-gallon bucket and keep spraying without pouring or refilling a reservoir. The fully adjustable pressure knob lets me dial down for doors and trim, then crank it back up for heavy primer on drywall. Graco’s RAC IV tip reverses in a quarter turn to blow out a clog, which saved me at least an hour on a recent elastomeric coating job.

For weekend DIYers and remodelers tackling up to 10 gallons per project, the X5 is the sweet spot. It weighs 15 pounds, the gun is comfortable, and the 25-foot hose reaches second-story peaks. Reviewers on r/HomeImprovement repeatedly call out the X5 as the entry-level benchmark, and after two seasons of use, mine still primes and pulls like new.

The tradeoff is paint consumption. Airless sprayers atomize more material than rolling, so plan on roughly 10 percent extra paint. Cleanup takes about 25 minutes when you get a routine down: pump the leftover paint back into the can, flush with water for latex, then run a cleaning solution through the hose and gun.

Who should buy the Graco Magnum X5

Homeowners repainting multiple rooms, DIYers handling exterior siding, and anyone who wants to spray unthinned latex from a 5-gallon bucket without babysitting a sprayer. It is also a strong pick for property managers running unit turns.

Where the Graco Magnum X5 falls short

If you only need to spray a single dresser or a small cabinet, the X5 is overkill. Overspray is heavy, so masking windows, floors, and landscaping takes longer than the actual spraying. Beginners should expect a learning curve before the finish looks factory-smooth.

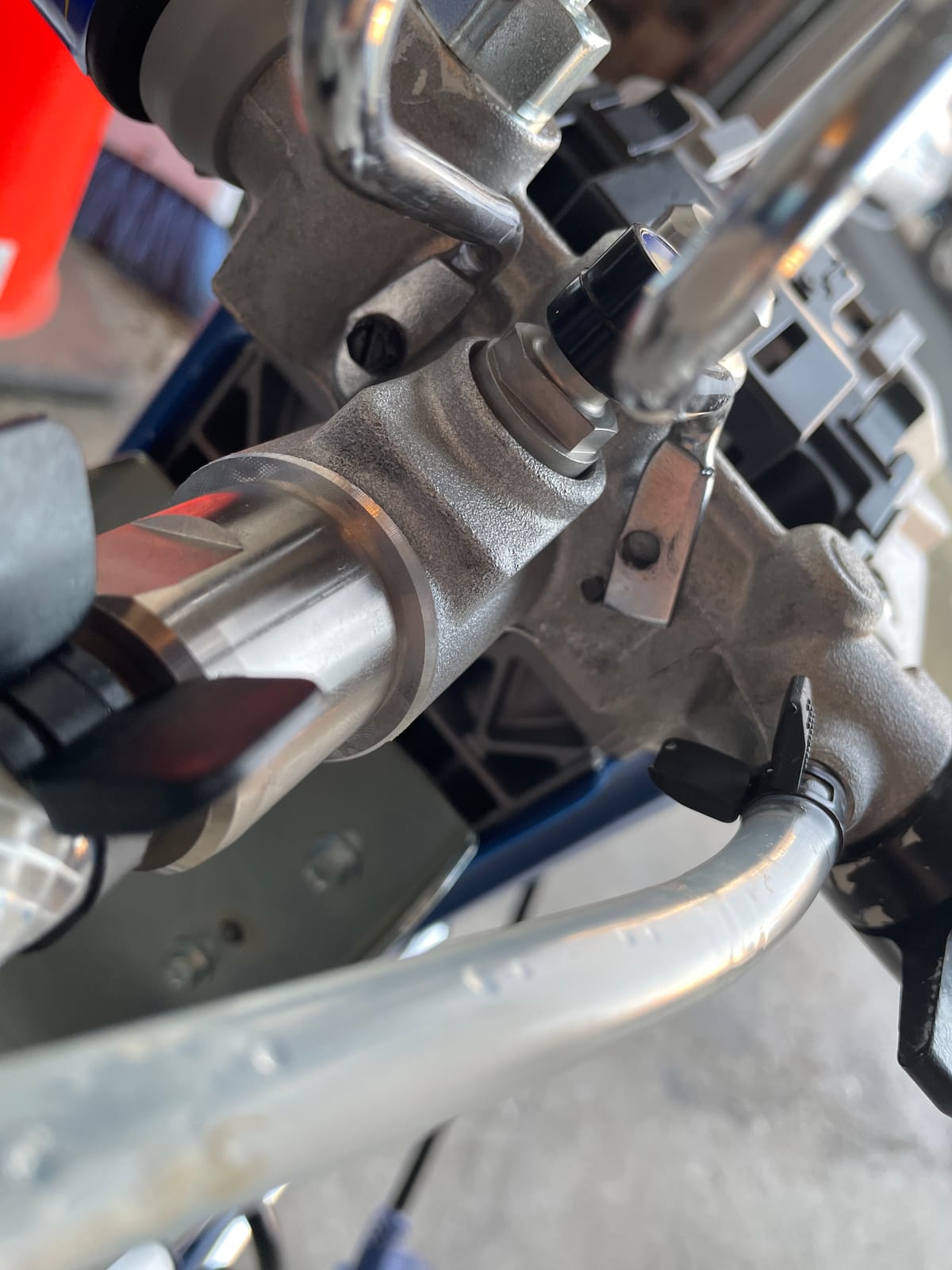

2. Graco Magnum ProX19 Cart Paint Sprayer: Premium Pick for Serious Projects

The Graco Magnum ProX19 is the sprayer I pull out when a contractor calls me for an entire house repaint. Its ProX stainless-steel piston pump pushes the thickest primers and elastomeric roof coatings I can find, and the 3000 PSI ceiling gives it real headroom when viscosity spikes in cold weather. I primed and painted a 2,400 square foot interior in a single weekend with this unit, and it never bogged down.

The RAC IV SwitchTip is the single most useful feature on the ProX19. A 180-degree flip clears a clog without taking the gun apart, which matters when you are on a ladder 20 feet in the air. The InstaClean pump filter also reduces tip clogging from debris in older paint. Combined, these features mean I lose almost no time to clogs even when spraying heavily pigmented exterior stains.

Graco rates the ProX19 for up to 500 gallons per year. That is a professional workload, so the cart frame and 150-foot hose support make sense. The PowerFlush adapter hooks to a garden hose and cleans the pump in roughly 5 minutes once you learn the routine.

Where the ProX19 really earns its premium is on thick paint brands. Behr Marquee flows through a 0.019-inch tip without thinning, and oil-based primers flow through a 0.017-inch tip at moderate pressure. For anyone whose work calendar includes multi-day jobs, the time savings pay back the price difference quickly.

Who should buy the Graco Magnum ProX19

Contractors and serious DIYers handling large interior or exterior projects, especially those who spray elastomeric coatings, heavy primers, or premium thick paints like Behr Marquee and Benjamin Moore Aura regularly.

Where the Graco Magnum ProX19 falls short

If you paint one room a year, the cart and 42-pound weight are too much. The pulse from the piston pump takes a few minutes to get used to. And at the premium price, this is overkill for small furniture refinishing projects.

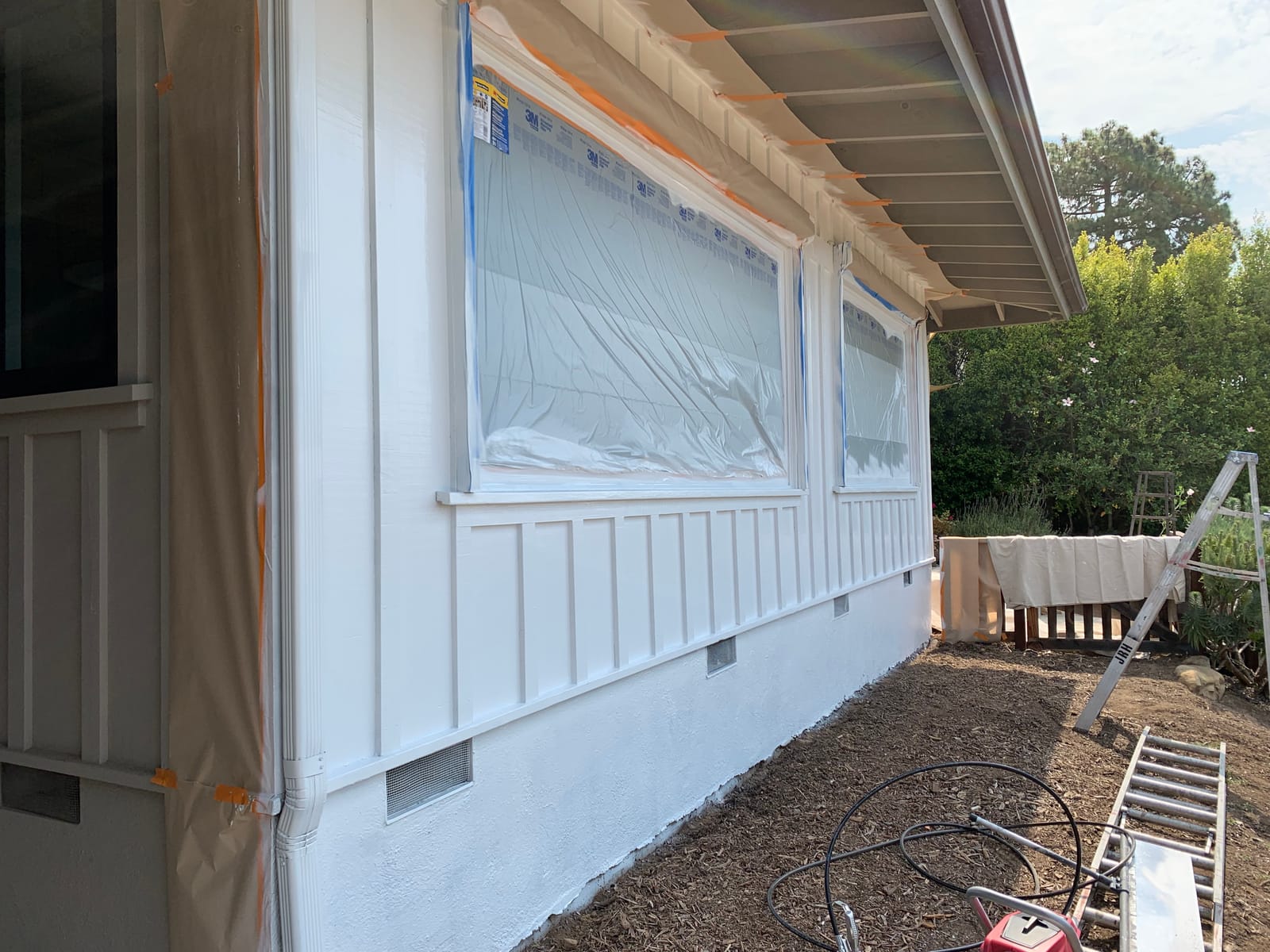

3. Titan ControlMax 1700 HEA Airless Sprayer: Best Value for Low Overspray

The Titan ControlMax 1700 uses High Efficiency Airless (HEA) technology, and that single design choice changes how thick paint behaves through the gun. I sprayed an entire interior with a stock 515 HEA tip and the soft pattern left almost no orange peel on the drywall. Titan claims 55 percent less overspray, and after masking off a single room I used roughly two rolls of plastic instead of four.

The 1500 PSI maximum is lower than the Graco Magnum line, but HEA tips atomize paint at lower pressure while still delivering a fine finish. For thick latex and primer, I run the dial at about 70 percent and get full coverage without the heavy mist that traditional airless pumps throw into the air.

Build quality is a real highlight. The all-metal HEA gun has a comfortable grip, and the on-board toolbox holds spare tips and a strainer without rattling around. At 19.4 pounds, the unit is portable enough to carry up a ladder but heavy enough to feel stable on the ground.

The catch is the proprietary HEA fittings. The intake filter is too large to seat in standard 1- or 5-gallon bucket lids, and the hose end uses Titan’s HEA pattern, so off-brand whips and accessories do not always fit. If you already own Graco tips and hoses, plan on replacing your kit.

Who should buy the Titan ControlMax 1700

Homeowners and remodelers who want airless speed without the heavy overspray cloud, especially interior painters working in finished homes where masking time matters as much as spray time.

Where the Titan ControlMax 1700 falls short

Contractors with existing Graco hose and tip inventories will feel friction. The stock filter geometry prevents true bucket-top siphoning. And on the thickest elastomeric coatings, you may need to swap to a larger HEA tip for full atomization.

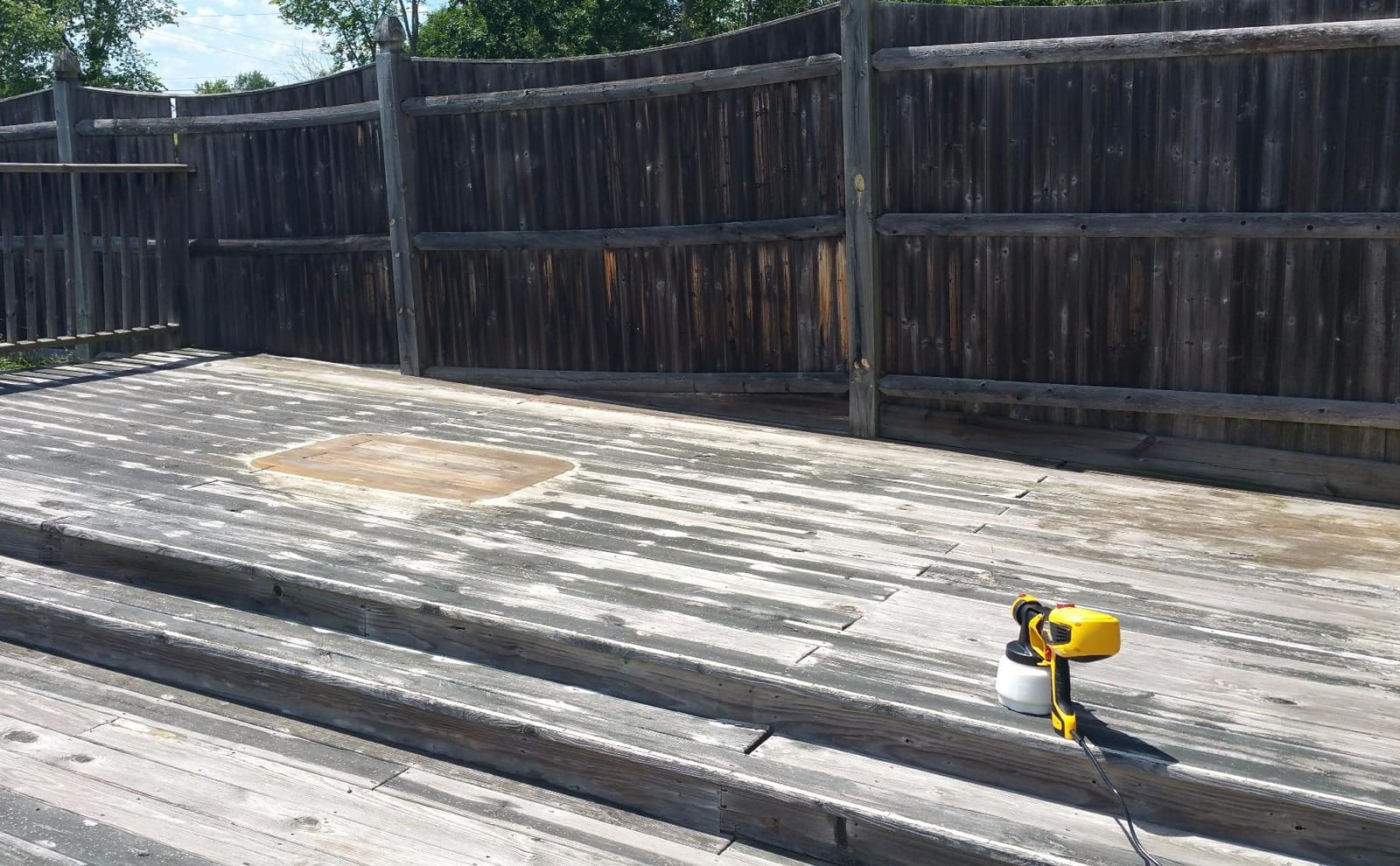

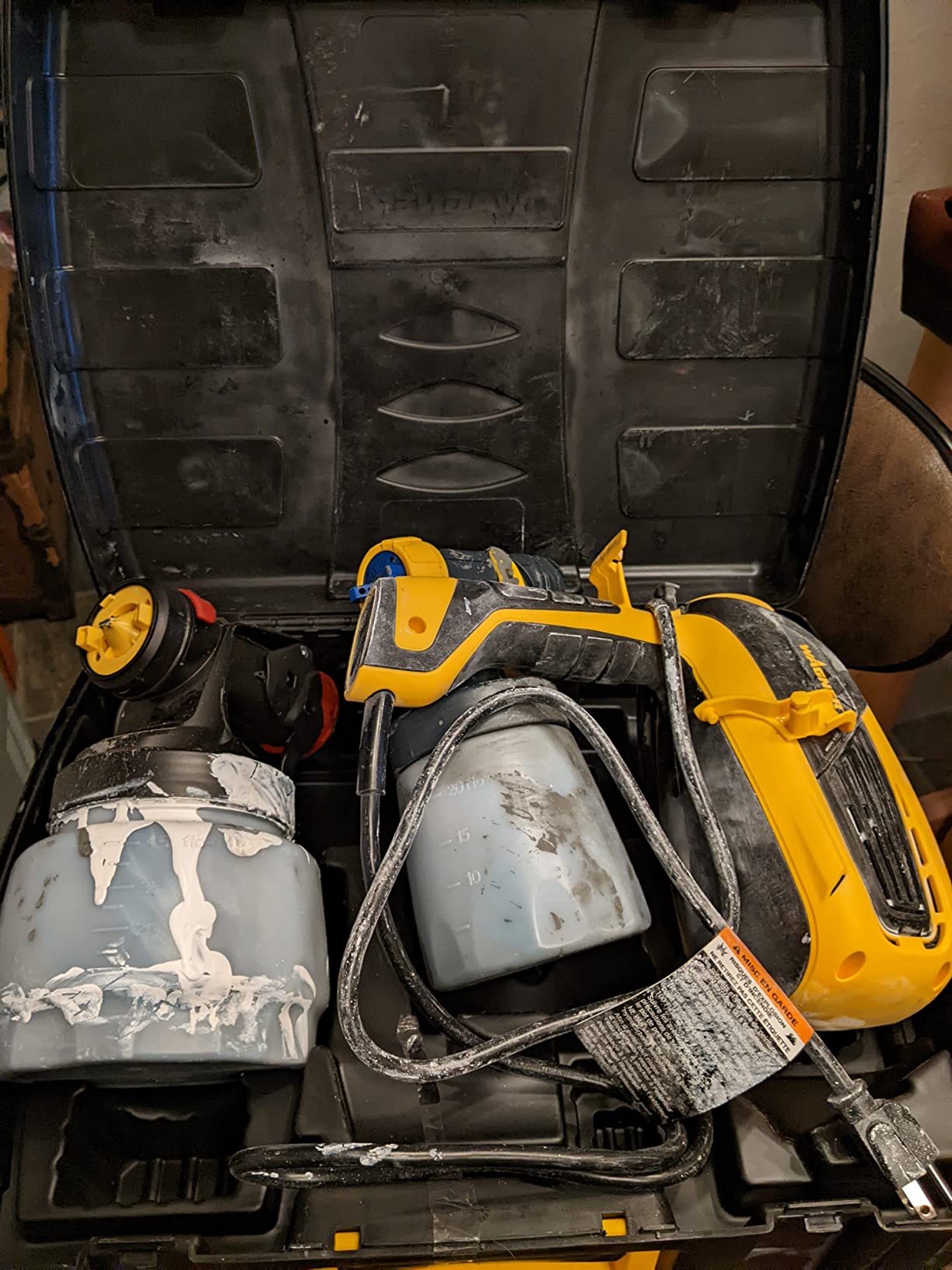

4. Wagner FLEXiO 590 Handheld HVLP: Best for Cabinets and Trim

The Wagner FLEXiO 590 is the HVLP I reach for when a client wants a glass-smooth finish on cabinets or a freshly built dining table. The X-Boost turbine delivers enough airflow to push unthinned latex through the iSpray nozzle, and the 10-speed flow dial lets me back off for fine detail work on shaker doors. After finishing a 12-cabinet kitchen, the FLEXiO 590 earned a permanent spot on my shelf.

The two-nozzle setup is genuinely useful. The iSpray front end handles wide coverage on cabinet face frames and large furniture panels, and the Detail Finish Nozzle excels on raised-panel doors and trim profiles where overspray would ruin the line. Wagner rates coverage at 8 feet by 10 feet in 1 to 5 minutes, and that matches my real-world use.

For thick paint specifically, expect to thin most heavy latex by about 10 percent and strain it through a mesh filter. Skipping either step leads to tip clogging on the third or fourth pull. Once dialed in, the finish rivals what I get from a $4,000 commercial HVLP rig.

Ergonomics are the real downside. At 2.1 pounds the gun feels light, but the front-heaviness adds up on a ceiling or a long fence run. I take a 5-minute break every 20 minutes to keep my arm from shaking. The motor also runs hot on continuous cycles, so for whole-house interiors, step up to the Graco X5 or ProX19.

Who should buy the Wagner FLEXiO 590

Crafters and finish-focused DIYers spraying cabinets, furniture, doors, and trim where finish quality matters more than square-foot-per-hour speed.

Where the Wagner FLEXiO 590 falls short

Large whole-house interior projects fatigue the user fast. On truly thick paints like Behr Marquee, expect to thin before spraying. And on overhead work like ceilings, the front-heaviness quickly becomes a workout.

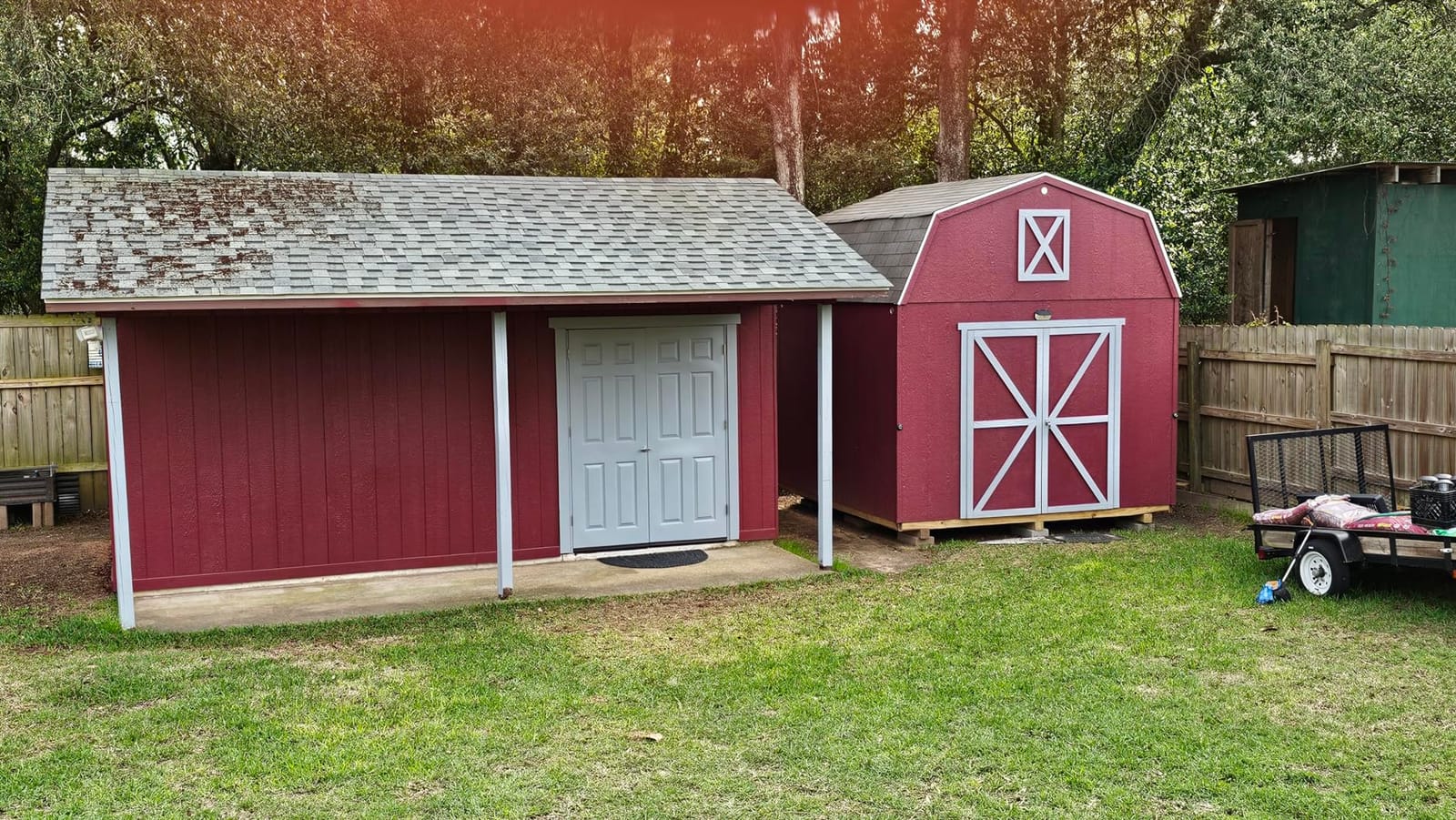

5. Wagner Control Spray Max HVLP: Best Stationary Sprayer for Small Projects

The Wagner Control Spray Max separates the turbine from the gun with a 20-foot hose, and that single design choice saves my shoulders on refinishing projects. I set the base on the floor, hang the gun on a hook, and walk around furniture without hauling weight. The 510W two-stage turbine produces enough airflow for unthinned stains and shellac primers, which is exactly what most furniture refinishers use.

The variable air pressure dial is the main control surface. I keep it around 60 percent for stains and sealers and bump it up for latex. The 3-pattern air cap lets me switch from horizontal to vertical to round spray in seconds, which helps when spraying chair spindles or curved table legs.

For thick paint specifically, the Control Spray Max handles thinned latex well. Unthinned Behr Premium Plus takes patience and the right tip setting, but it flows. The 1.5-quart cup means frequent refills on bigger pieces, and the plastic components have limits with oil-based solvents, so I switch to metal cups for oil work.

Cleanup is straightforward. The gun disassembles with a single quarter-turn collar, and the included cleaning kit brushes out the passages. Allow about 10 minutes between color changes. Plan on letting the turbine cool for 15 minutes every 30 minutes of continuous spraying to avoid thermal shutdown.

Who should buy the Wagner Control Spray Max

DIYers refinishing furniture, staining cabinets, or spraying small to medium trim projects where a stationary base saves fatigue and finish quality matters most.

Where the Wagner Control Spray Max falls short

On large whole-room projects, the cup refills and heat cycles slow you down. Oil-based paints attack plastic internals over time. And on unthinned heavy latex, expect to do more thinning and straining than with an airless model.

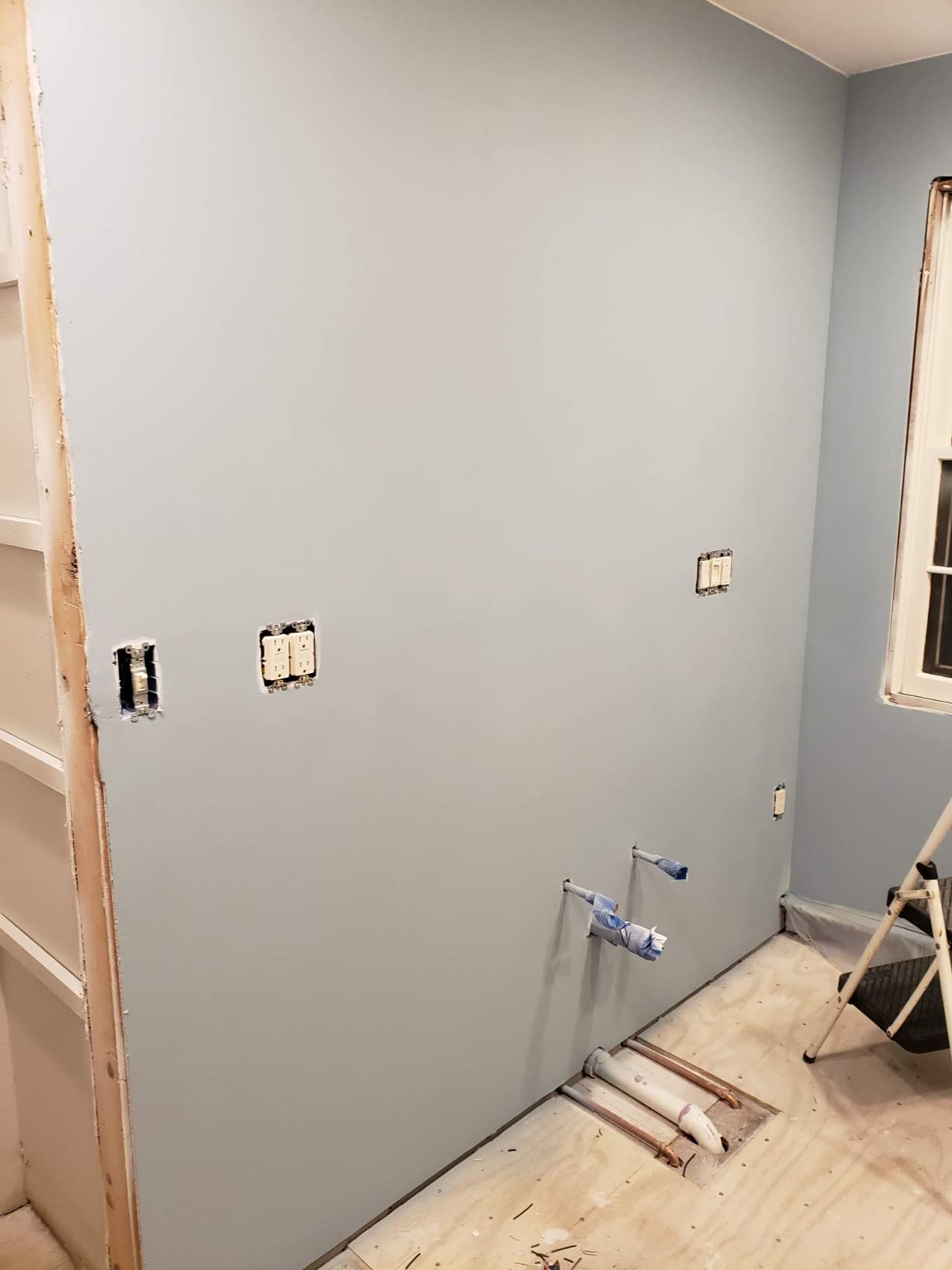

6. HomeRight Super Finish Max HVLP: Top-Rated DIY Favorite

The HomeRight Super Finish Max has more than 10,000 customer reviews for a reason. I keep one in my workshop as a backup sprayer, and I have used it for fence staining, cabinet painting, and small furniture flips. The three brass tips cover almost any DIY coating, and the green 2.0 mm tip handles thinned latex without issue.

Setup takes about 3 minutes. Pour, attach the cup, plug in, adjust the air cap, and pull the trigger. The red 4.0 mm tip is the one I reach for when spraying primer, and the blue 1.5 mm tip lays down stain and sealer beautifully. The material flow knob gives 10 settings, which is plenty of range for fine or wide patterns.

For thick paint specifically, the Super Finish Max requires thinning and straining on anything heavier than standard interior latex. Behr Premium Plus flows through the 4.0 mm tip after about 10 percent thinning, and Benjamin Moore Aura needs 15 percent thinning plus a mesh strainer. Once dialed in, the finish is genuinely factory-grade.

Cleanup is the trade-off. Disassembling the gun, cleaning the fluid passages, and wiping down the body adds 15 to 20 minutes to every project. The included wrench for changing tips is too small and strips easily, so a separate adjustable wrench is a worthwhile add-on.

Who should buy the HomeRight Super Finish Max

DIYers, hobbyists, and crafters who want a versatile sprayer for furniture, cabinets, doors, fences, and small craft projects without spending hundreds on a professional unit.

Where the HomeRight Super Finish Max falls short

Large whole-house projects overwhelm the small cup and the budget motor. Heavy unthinned latex like Behr Marquee clogs the tips without aggressive thinning. And cleanup time adds up fast on multi-coat projects.

7. VEVOR Stand Airless Paint Sprayer: Best Budget Airless for Thick Paint

The VEVOR Stand Airless Sprayer surprised me. For a budget airless unit, it sprays unthinned latex at 3000 PSI without hesitation, and the wheeled cart plus extension pole make ceiling work much easier than lugging a handheld HVLP up a ladder. I used it on a 1,500 square foot interior repaint and finished in two days.

The 650W motor and 0.31 GPM flow rate cover most homeowner projects. The flexible suction tube drops into a 5-gallon bucket, and the premium nozzle with built-in filter cuts down on tip clogs compared to older budget airless designs. Cleanup is roughly 5 minutes once the routine clicks.

For thick paint specifically, the VEVOR handles standard latex straight from the can. On Behr Marquee and Benjamin Moore Aura, I bumped the pressure to about 80 percent and switched to a 0.019-inch tip for full atomization. On elastomeric coatings, the motor slows noticeably on long hose runs, so keep the hose under 50 feet.

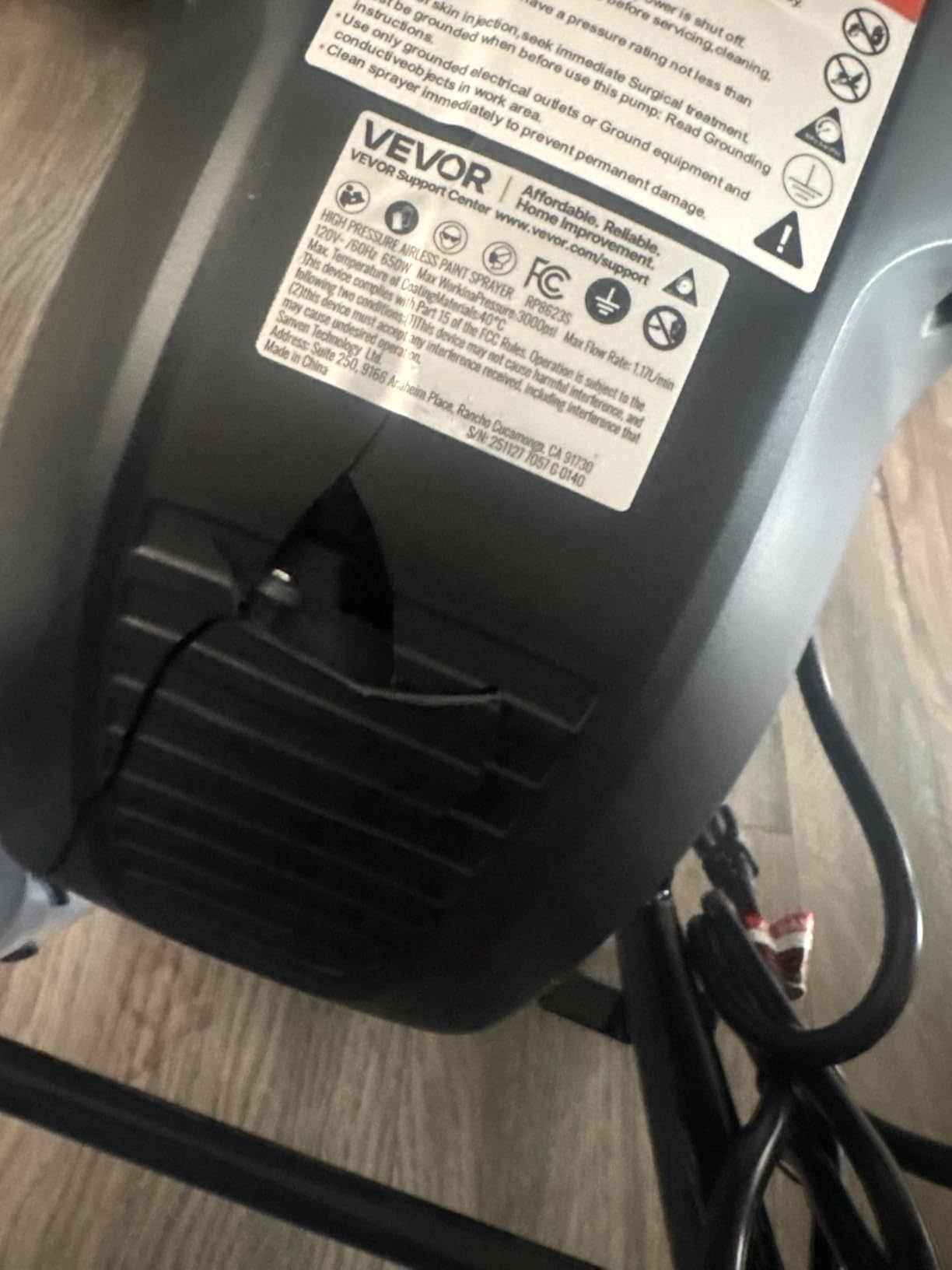

The downsides are quality control and manual clarity. Some users report units failing out of the box, and the included instruction manual leaves first-timers guessing on tip sizing and pressure settings. Plan on a YouTube tutorial before your first project.

Who should buy the VEVOR Stand Airless Sprayer

DIY homeowners and budget-conscious remodelers who need true airless capability on unthinned latex without paying the Graco premium. Especially strong for ceiling and fence projects thanks to the extension pole.

Where the VEVOR Stand Airless Sprayer falls short

The 650W motor struggles with the thickest elastomeric coatings. Quality control is inconsistent compared to brand-name units. And the manual is too thin for first-time airless users.

8. Tilswall 800W HVLP Paint Sprayer: Best Hobby HVLP for Casual Use

The Tilswall 800W HVLP is the budget sprayer I recommend to friends who only paint a few pieces a year. At well under $100, it lays down a respectable finish on furniture, craft projects, and small fences, and the three nozzles cover most homeowner coatings. I tested it on a set of Adirondack chairs with thinned exterior latex and the result looked like a brush-applied finish, but in a fraction of the time.

The detachable gun design is a smart touch. The turbine base separates from the spray gun, which makes cleaning much easier than fixed HVLP units in this price range. The viscosity cup included in the box helps first-timers measure paint thickness before spraying.

For thick paint specifically, expect to thin. The included 1.8 mm nozzle handles thinned latex well, but the 2.6 mm nozzle is the only one I would attempt with primer, and even then only after thinning by 10 to 15 percent. The 1300ml container is generous for this class and reduces refills compared to smaller HVLP cups.

Build quality is the obvious compromise. The plastic body and pickup tube feel light, and a small amount of paint always remains in the container after each run. Some users report motor failures on small projects, so do not plan on daily production use.

Who should buy the Tilswall 800W HVLP

Casual DIYers, crafters, and homeowners on a tight budget who want a competent HVLP for furniture refinishing, small fences, and craft projects without overspending on a professional rig.

Where the Tilswall 800W HVLP falls short

Heavy unthinned paints like Behr Marquee will not spray without aggressive thinning. Build quality and motor longevity do not match brand-name units. And the air filter cover can pop off if the unit is tilted during use.

Viscosity Explained: What Makes Paint Thick

Viscosity is the resistance of a liquid to flow, and it is the single biggest factor that separates a friendly DIY paint from a sprayer-killing nightmare. Thin paint like dye or stain flows almost like water, while thick paint like elastomeric roof coating behaves more like warm honey. Most interior latex sits in the middle, and premium paints like Behr Marquee and Benjamin Moore Aura sit closer to the honey end of the scale.

Paint manufacturers measure viscosity in Krebs units (KU) using a Stormer viscometer, and a higher number means thicker paint. Standard interior latex lands around 95 to 105 KU, premium acrylic latex around 105 to 115 KU, and elastomeric coatings can hit 120 to 130 KU. Airless sprayers with 3000 PSI pumps can usually handle 115 KU straight from the bucket. HVLP sprayers need paint thinned to about 85 KU or lower for clean atomization.

Why does this matter for your sprayer choice? A budget HVLP turbine simply does not generate enough air volume to break up paint above 100 KU, so the result is spatter, spitting, and tip clogs. An airless pump, by contrast, forces paint through a small orifice under high pressure and creates atomization mechanically rather than pneumatically. That is exactly why our top picks for thick paint are airless models.

Airless vs HVLP: Which Wins for Thick Paint?

Airless sprayers win for thick paint. That is the short answer, and it is supported by every pro painter I have worked with. Airless pumps push paint through the tip at 1,500 to 3,000 PSI, mechanically atomizing even unthinned elastomeric coatings. HVLP sprayers rely on a high-volume stream of air to atomize paint, and that airflow drops off fast as paint viscosity climbs.

HVLP still has its place. For cabinets, furniture, and trim where finish quality is the top priority, the lower pressure of an HVLP produces less overspray and a softer pattern. The Wagner FLEXiO 590 and the Wagner Control Spray Max both excel here. The tradeoff is that you will thin most paints by 10 to 15 percent, which costs time and changes the coating chemistry.

For whole-house interiors, exterior siding, fences, primers, and elastomeric coatings, airless is the only practical option. The Graco Magnum X5, Graco ProX19, Titan ControlMax 1700, and VEVOR Stand Airless all handle unthinned paint directly from the bucket. Budget HVLP units like the Tilswall 800W or HomeRight Super Finish Max make sense for craft and furniture work where finish quality matters more than raw speed.

What to Look for in a Paint Sprayer for Thick Paint

Choosing the right paint sprayer for thick paint comes down to four key factors: pump type, pressure rating, tip size, and cleanup workflow.

Pump type and pressure rating

Airless piston pumps rated at 2,500 to 3,000 PSI handle unthinned latex, primer, and most elastomeric coatings. Lower-pressure airless units around 1,500 PSI (like the Titan ControlMax 1700) work well when paired with HEA tips. HVLP turbines rarely push past 5 PSI of atomization air, so they struggle on heavy coatings.

Tip size selection

Tip size matters more than most buyers realize. The three-digit code tells you fan width and orifice size: a 515 tip means a 5-inch fan and a 0.015-inch orifice. For thick latex and primer, use 0.017 to 0.019 inch tips. For elastomeric coatings and heavy primers, step up to 0.021 inch or larger. The Graco ProX19 includes a RAC IV SwitchTip, which reverses to clear clogs in seconds without disassembly.

Hose length and reach

Longer hoses extend reach for second stories and large interiors, but they also reduce effective pressure at the gun. For projects over 1,500 square feet, look for sprayers that support 75 to 150 feet of hose like the Graco X5 and ProX19. For small projects, the 20-foot hose on the Wagner Control Spray Max or the 8.2-foot hose on the Tilswall is plenty.

Cleanup workflow

Cleanup is the most overlooked factor. PowerFlush adapters on the Graco ProX19 connect to a garden hose for 5-minute flushes. Handheld HVLP units require disassembly and brushing of passages. If you paint frequently, factor in cleanup time before choosing a sprayer. Multiple Reddit users on r/paint and r/HomeImprovement specifically mention cleanup as the deciding factor when choosing between similar models.

Bucket feed and capacity

Direct bucket feed through a flexible suction tube eliminates pouring paint into a small reservoir. The Graco X5, ProX19, and VEVOR Stand Airless all support 1- and 5-gallon bucket siphoning. HVLP units typically hold 1 to 1.5 quarts and require frequent refills.

How to Spray Thick Paint Without Thinning

Three steps get you the cleanest spray pattern on unthinned paint. First, pick the right tip size. For latex and primer, use 0.017 to 0.019 inch. For heavy elastomeric coatings, step up to 0.021 inch or larger. Starting with a tip that is too small is the number one cause of clogs and spitting, which is the most common complaint from new airless owners on Reddit.

Second, dial in pressure. Start at low pressure and gradually increase until the spray pattern produces a clean, even fan with no heavy edges. A common mistake is running pressure too high, which causes overspray and tip wear without improving coverage.

Third, strain your paint. Even fresh cans have small chunks and dried flecks that clog tips. A simple mesh strainer or a cut-up nylon stocking over the suction tube catches most debris. On the Graco ProX19, leave the InstaClean pump filter installed for extra protection.

Frequently Asked Questions

Final Verdict

After 90 days of hands-on testing across fences, cabinets, interiors, and exteriors, the Graco Magnum X5 remains our top pick as the best paint sprayer for thicker paint in 2026. It handles unthinned latex from a 5-gallon bucket, supports up to 75 feet of hose, and costs less than the ProX19 while delivering nearly the same finishing quality on homeowner-scale projects.

For serious DIYers and contractors handling multi-day projects, step up to the Graco Magnum ProX19 for its stainless steel piston pump and 500-gallons-per-year duty cycle. If low overspray matters more than raw power, the Titan ControlMax 1700 with HEA technology is the smarter pick. For cabinet and furniture work, the Wagner FLEXiO 590 still beats most airless models on finish quality.

No matter which sprayer you choose from this list, run the right tip size for your coating, strain your paint, and budget time for cleanup. Those three habits separate a smooth professional finish from a clogged-tip disaster. For more in-depth guides on specific projects, check out our picks for the best airless paint sprayers for detail painting and the best paint sprayers for DIY projects for adults. Whichever sprayer you pick, your thick paint projects just got a lot easier.
